Lewis

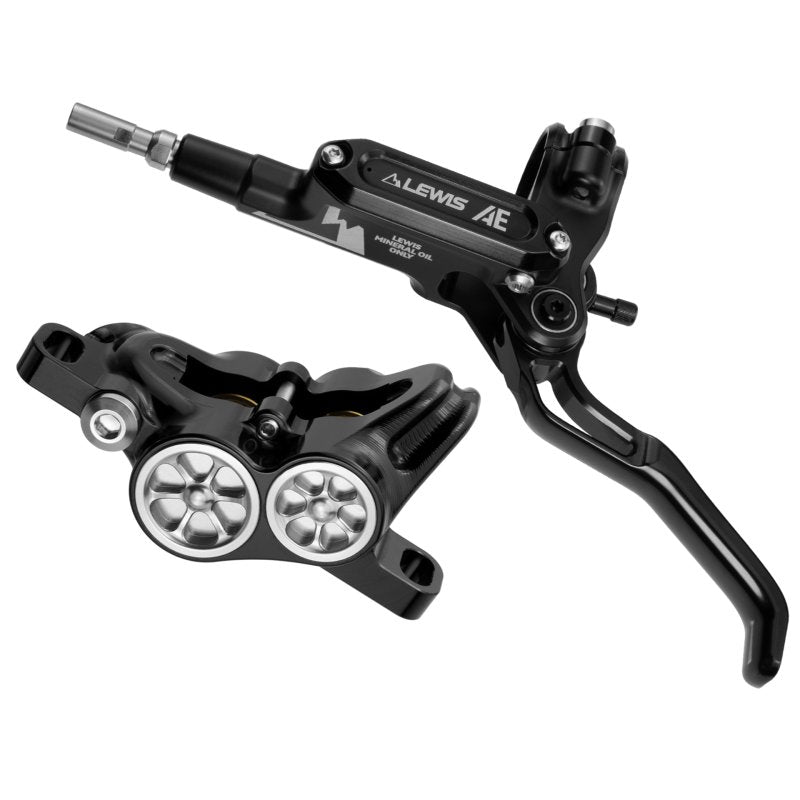

Lewis AE Brakeset
Lewis AE Brakeset
Couldn't load pickup availability

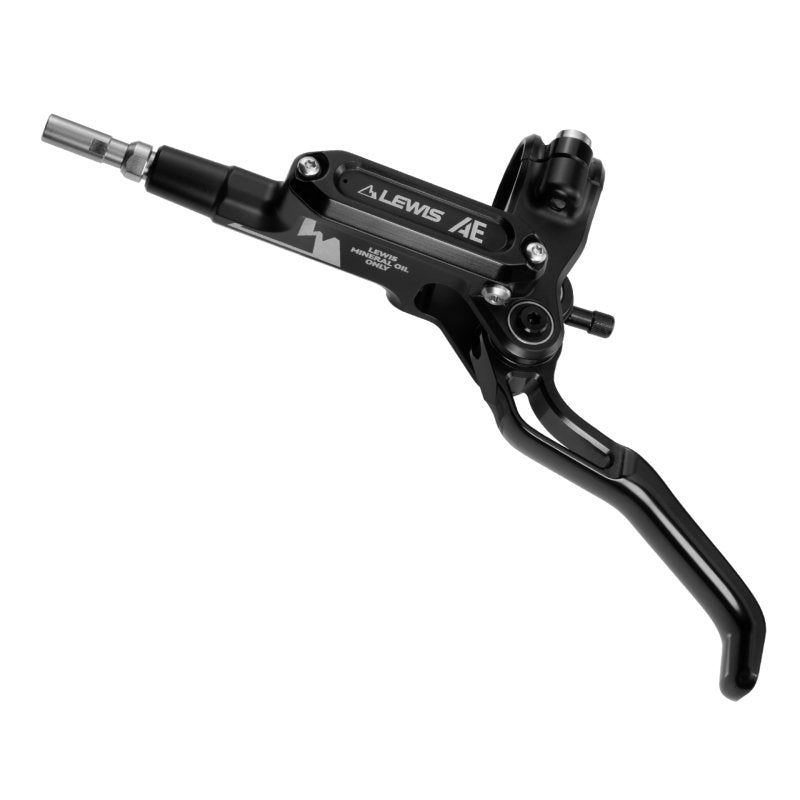

The AE brake lever features a completely new feel tuning, providing a firmer and more substantial sensation compared to the LH series. It is better suited for riders who prefer a higher feedback force from the brake lever.

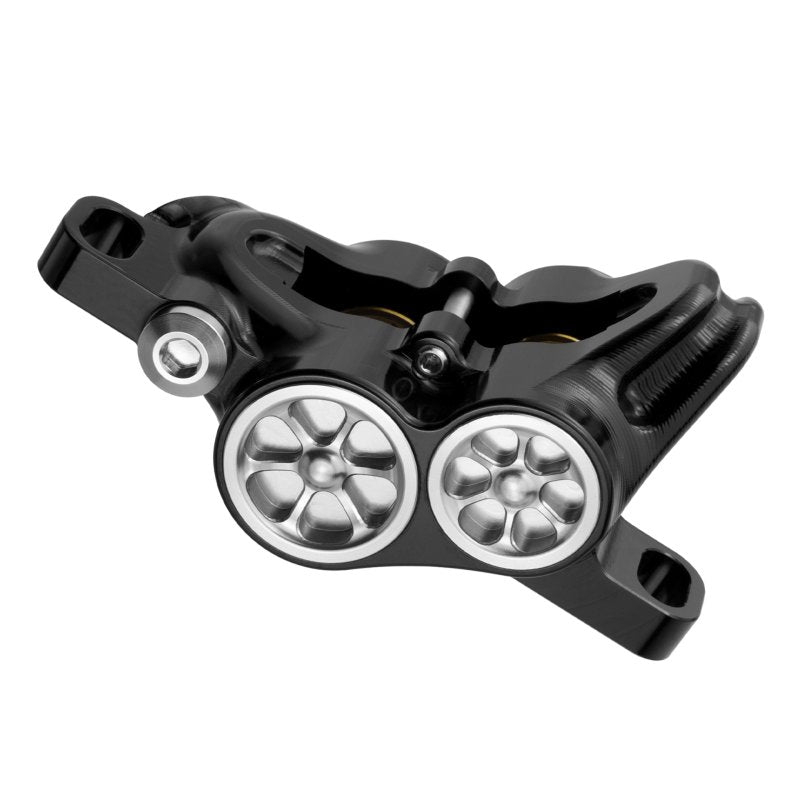

The AE brake uses Lewis's latest integrated CNC caliper, offering higher caliper rigidity, longer maintenance intervals, and extended lifespan.
AE brakes are made of aerospace-grade 7075 aluminum, which are cut and formed by CNC high-precision, with high strength and light weight.
Single brake lever weight: 112g; Single caliper weight: 108g
The 14mm + 17mm asymmetric piston design enhances brake linear feel, ensures even brake pad pressure distribution, and balances wear.
Up to four precision bearings make up the pivot point of the brake lever, providing riders with an exceptional braking experience down to the finest details.
SPECIFICATIONS
| MASTER CYLINDER | |
| Type | Axial |
| Material | 7075 aluminum |
| Body Finish | Black |
| Clamp Color | Black |
| Clamp Type | Split |
| Screws | Stainless Steel |
| ADJUSTABLE LEVER REACH | YES, Tool Free |
| LEVER BLADE | |
| Material | 7075 Aluminum |
| Color | Black |
| Brake lever version | 1 Finger |
| CALIPER | |
| Material | 7075 Aluminum |
| Color | Black |
| MOUNT TYPE | Post mount |
| Piston | 2 x 14mm + 2 x 17mm Stainless steel Pistions |
| Screws | Stainless Steel |
| Pad type | Metallic |
| Pad shape | Lewis LH4 / Lewis S4 / Hope E4 style |
| Hose | |
| Hose size | Outside Diameter 5mm，Bore 2.2mm |
| Hose length | 90cm front /165cm rear, can be shorten to adapt bike |
| Hose finish | Black, Braided Lewis T150 Oil Hose |
| INTENDED USE | Enduro, Downhill, All-Mountain |
| Rotors | Not included, optional (160mm|180 mm|200mm | 203 mm|220mm | 223 mm) |
| Adapter | Not included |
| WEIGHT | Single brake lever : 112g; Single caliper: 108g |
| Oil | Mineral oil |
