Orbea Rise Lt Carbon M20 Small

This one will be priced to go!

Unfortunatley this bike was ordered, but the sale could not go through. So we are moving this one on at a great price. Get in touch to find out what kind of deal we can do for you. (hint, it will be very sharp)

The Trail Shredder's eMTB. Rise LT offers 160mm / 150mm of plush travel with a progressive trail geometry.

Actual weight - 21kgs

Full power motor - 630wh battery!

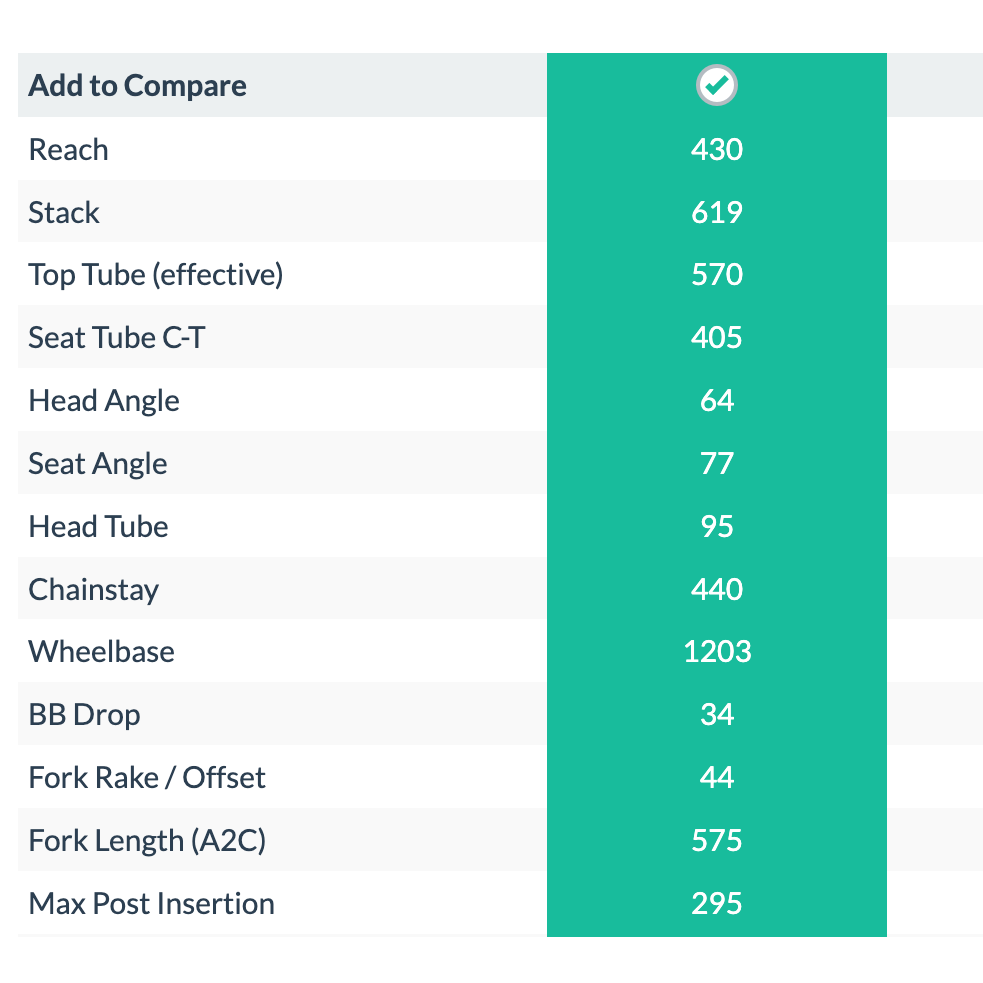

Geo chart is in the images

Specs

Frame Size Small

Orbea Rise LT OMR 2025, 150mm travel, 29" wheels, Concentric Boost 12x148

Shock Upgraded

Fox Float X Performance 2-Pos Evol LV custom tune 210x55mm

Fork

Fox 36 Float Performance 160 Grip 3-Pos QR15x110

Steerer tube

Alloy 1-1/2", Black Oxidated Bearing

Ebike

Battery

Orbea Internal 630Wh

Motor

Shimano EP801 RS Gen2 MC Full Power

Display Upgraded

EN600

CHARGER

Orbea 2.Generation eBike Smart charger 42V/2-4A

Remote

EN600-L

Drivetrain

Chainring

e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine

Crank

Shimano Steps EM600

Shifters

Shimano SLX M7100 I-Spec EV

Cassette

Shimano CS-M7100 10-51t 12-Speed

Rear derailleur

Shimano SLX M7100 SGS Shadow Plus

Chain

Shimano M6100

Chainguide

Orbea eBike chainguide

Cockpit

Handlebar

OC Mountain Control MC31, Rise20, Width 800

Stem

OC Mountain Control MC20, 0º 35mm

Computer Mount

OC Computer Mount CM-05, Garmin/Sigma

Brakes

Brakes

Shimano M6120 Hydraulic Disc

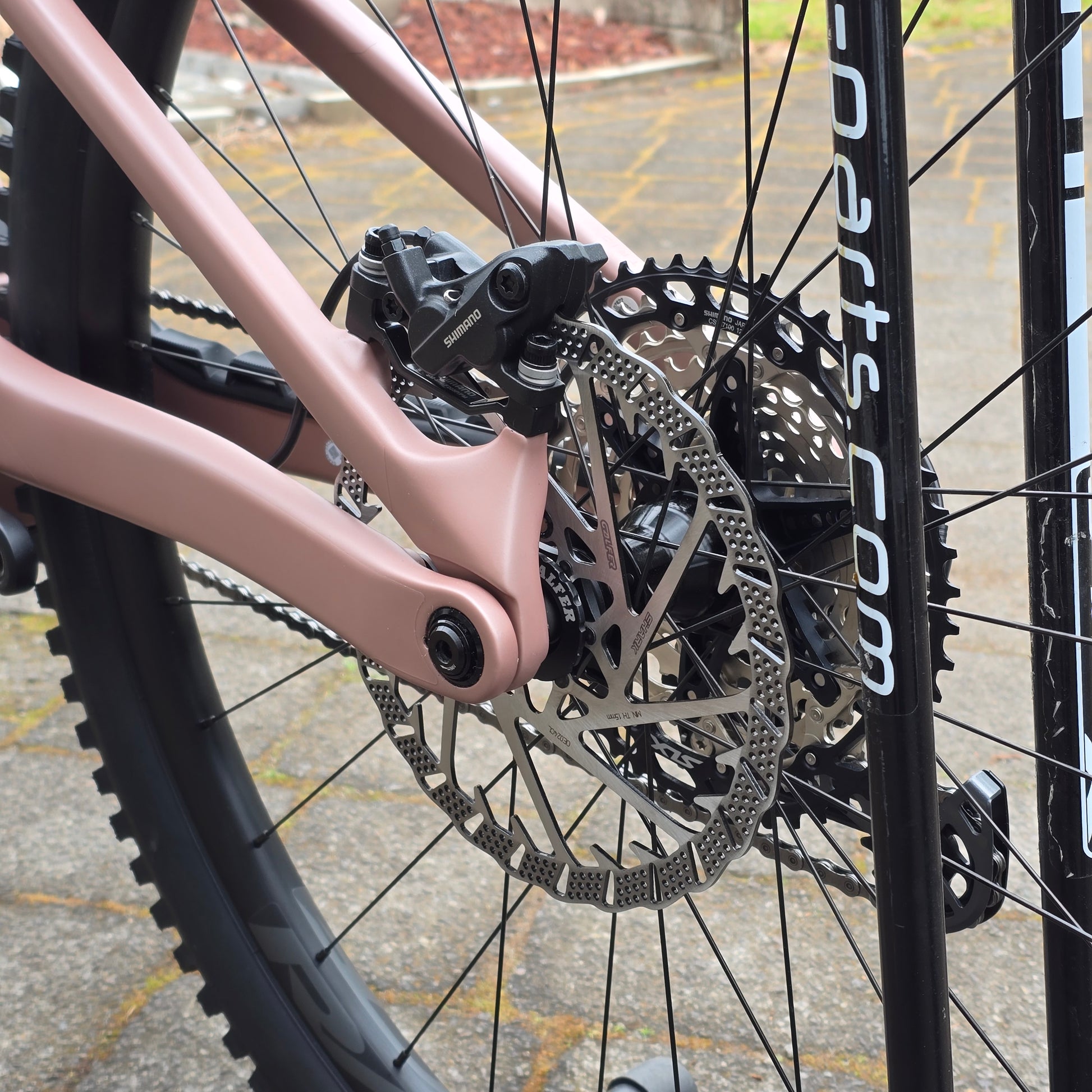

Rotors Upgraded

Galfer Shark rotors 203mm Front and Rear

Wheels

Race Face AR 30c Tubeless Ready

Tyres

Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip

Tyres

Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C MaxxTerra Exo+ TR

Components

Seatpost

OC Mountain Control MC22, 31.6mm, Dropper 170mm

Seatpost Lever

Shimano SL-MT500 I-Spec EV

Saddle

Fizik Terra Ridon X5 145mm

Grips

OC Lock On
