SR Suntour Raidon 34 Youth Fork

Don't be fooled, not all Suntour products are cheap OEM rubbish.

SR Suntour actualy make some really nice products, and these forks prove it.

Perfect to upgrade those cheap, coil spring, budget OEM forks that came on your little rippers bike, and they don't brake the bank!

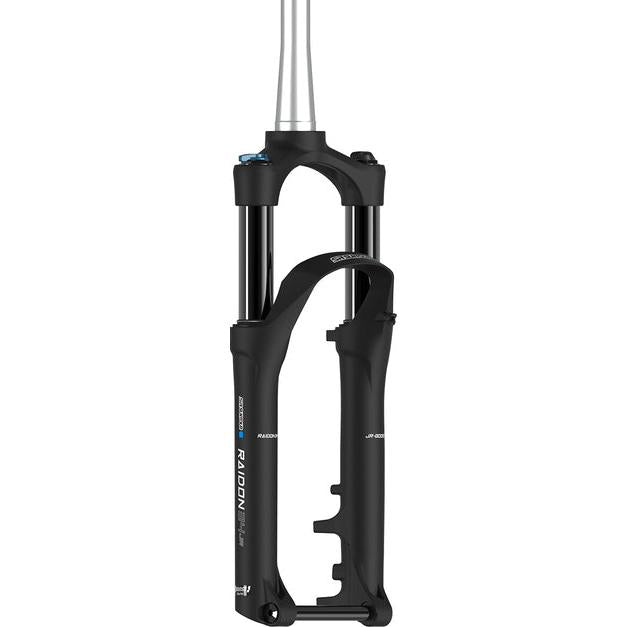

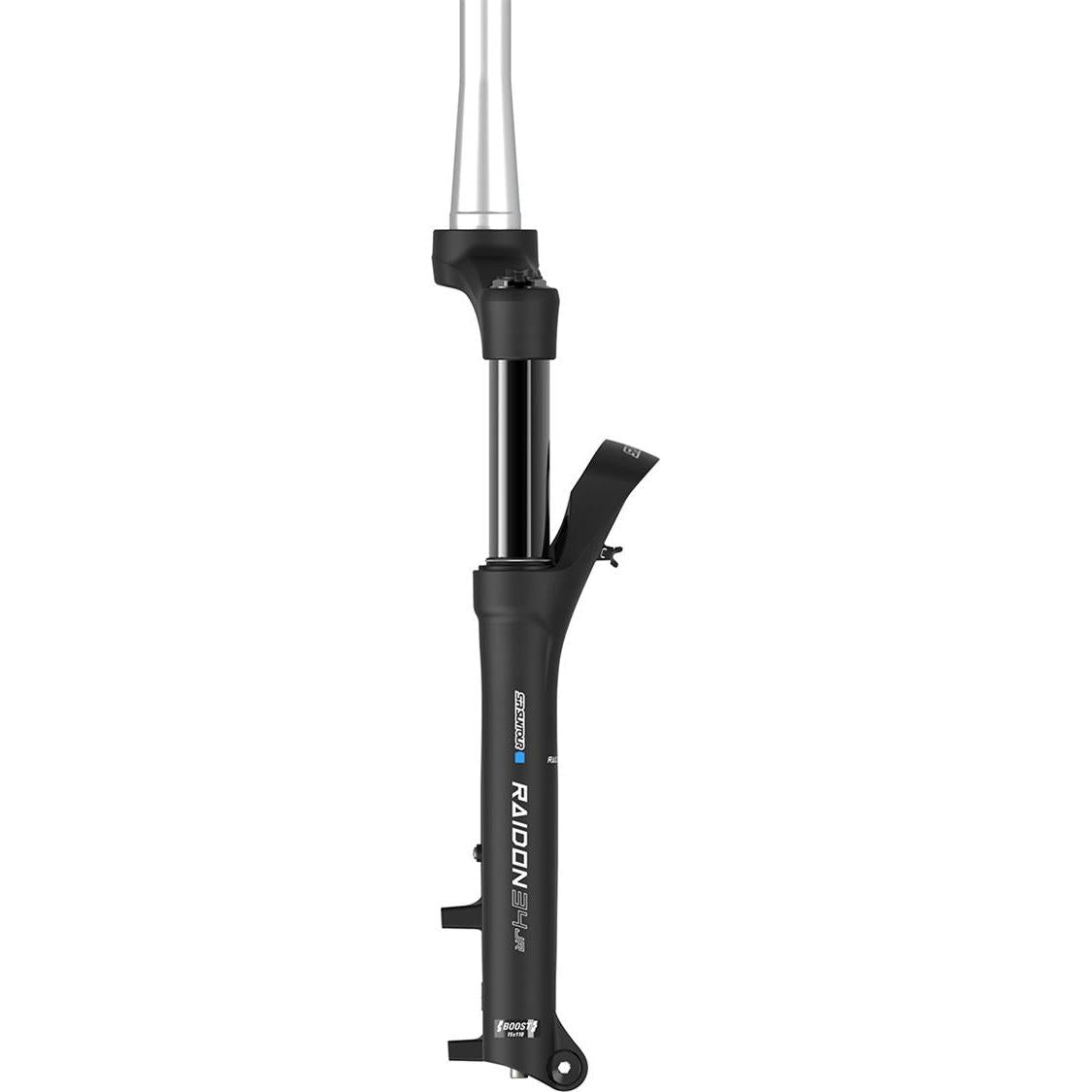

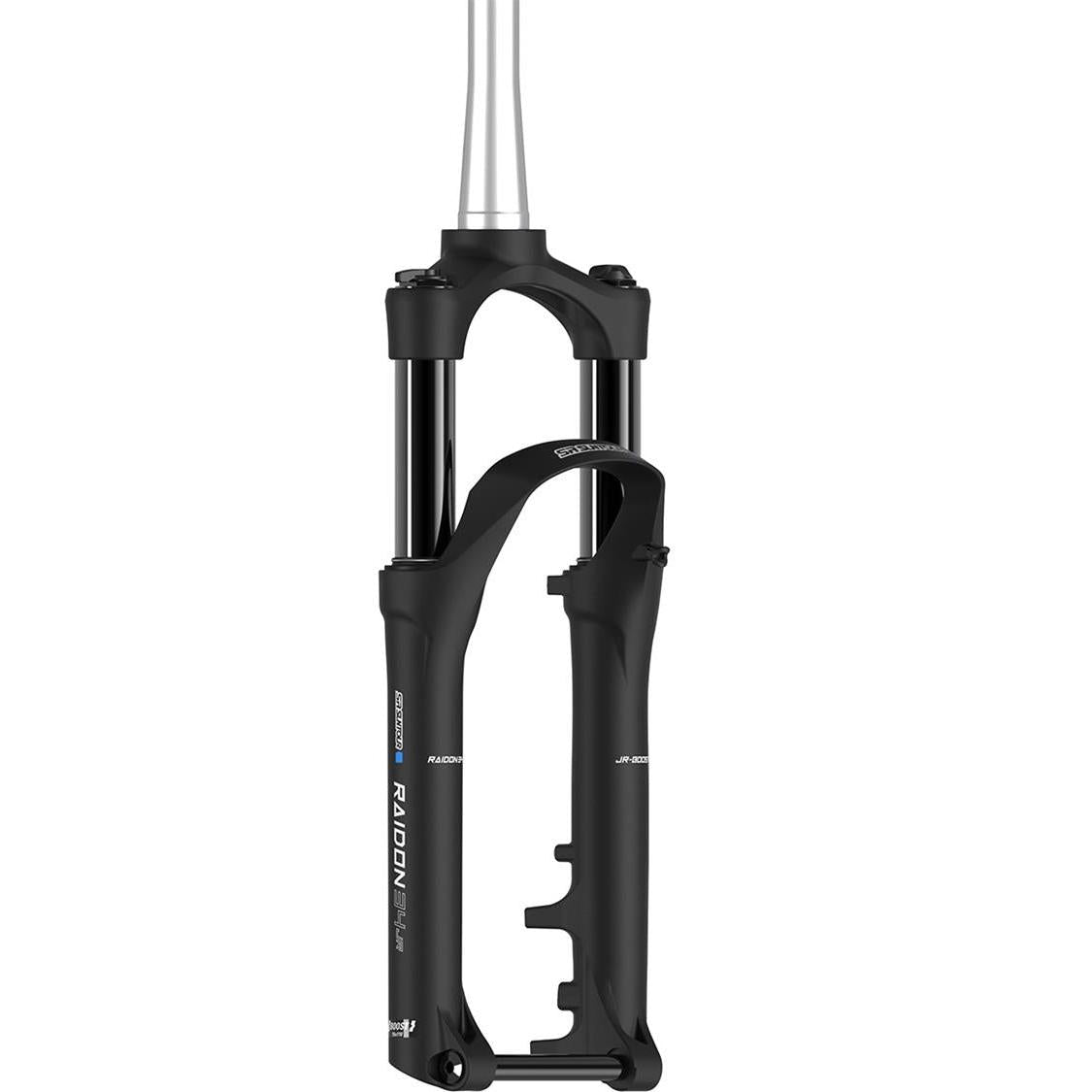

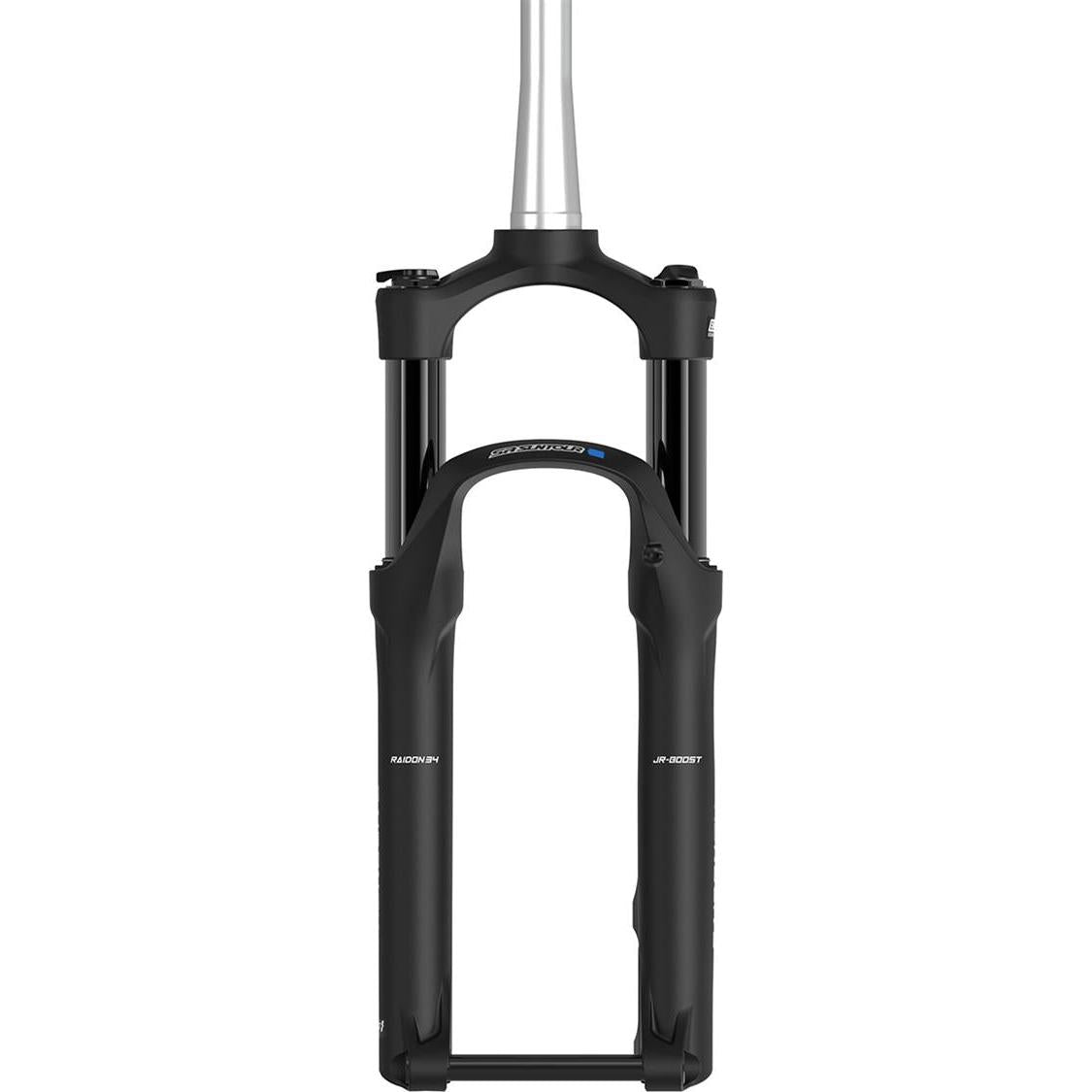

SUNTOUR - RAIDON 34

The RAIDON34-Boost adopts our newest EQ spring system found in our top of the line models such as the Durolux and Aion! The Raidon features a robust but light weight 34mm chassis to provide precise control and steering. The 2CR system incorporates a 2 stage compression setting for the first time in any Raidon series fork. This feature gives the the fork an adjustment of open or firm compression setting. Adjustable rebound is still standard. Read more about the EQ air spring below.

EQ EQUALIZER™ SYSTEM

The Air EQ system, perfectly equalizing the rider's weight to the spring curve resulting in exact positioning and support. The Air EQ system creates a customized feel for each rider, optimizing proper sag and volume control. The result is a supple coil-spring feel in a lightweight, progressive and easy to adjust air-spring package.

20"

• Offset: 44mm
• Travel: 100
• Crown/Steerer: C58/ 1.5" to 1-1/8" tapered(CTS), Alloy
• Stanchion DIA. (Material): 34 mm (Alloy)
• Bottom Case Material: Magnesium
• Brake Mount (Max Rotor DIA.): Post 180 Direct (203mm)
• Axle (Option): 15AH2-110 (15LH-110) (Learn more)
• Suggested Category: MTB Trail / XC
• Spring: AIR(EQ)
• Max. Suggested Tire Size (ETRTO): 20"x2.6" (65-406)
• Damper: 2CR (Learn more)
• Axle O.L.D: ø15-110

24"

• Offset: 44mm
• Travel: 100/120
• Crown/Steerer: C58/ 1.5" to 1-1/8" tapered(CTS), Alloy
• Stanchion DIA. (Material): 34 mm (Alloy)
• Bottom Case Material: Magnesium
• Brake Mount (Max Rotor DIA.): Post 180 Direct (203mm)
• Axle (Option): 15AH2-110 (15LH-110) (Learn more)
• Suggested Category: MTB Trail / XC
• Spring: AIR(EQ)
• Max. Suggested Tire Size (ETRTO): 24"x2.6" (65-507)
• Damper: 2CR (Learn more)
• Axle O.L.D: ø15-110
