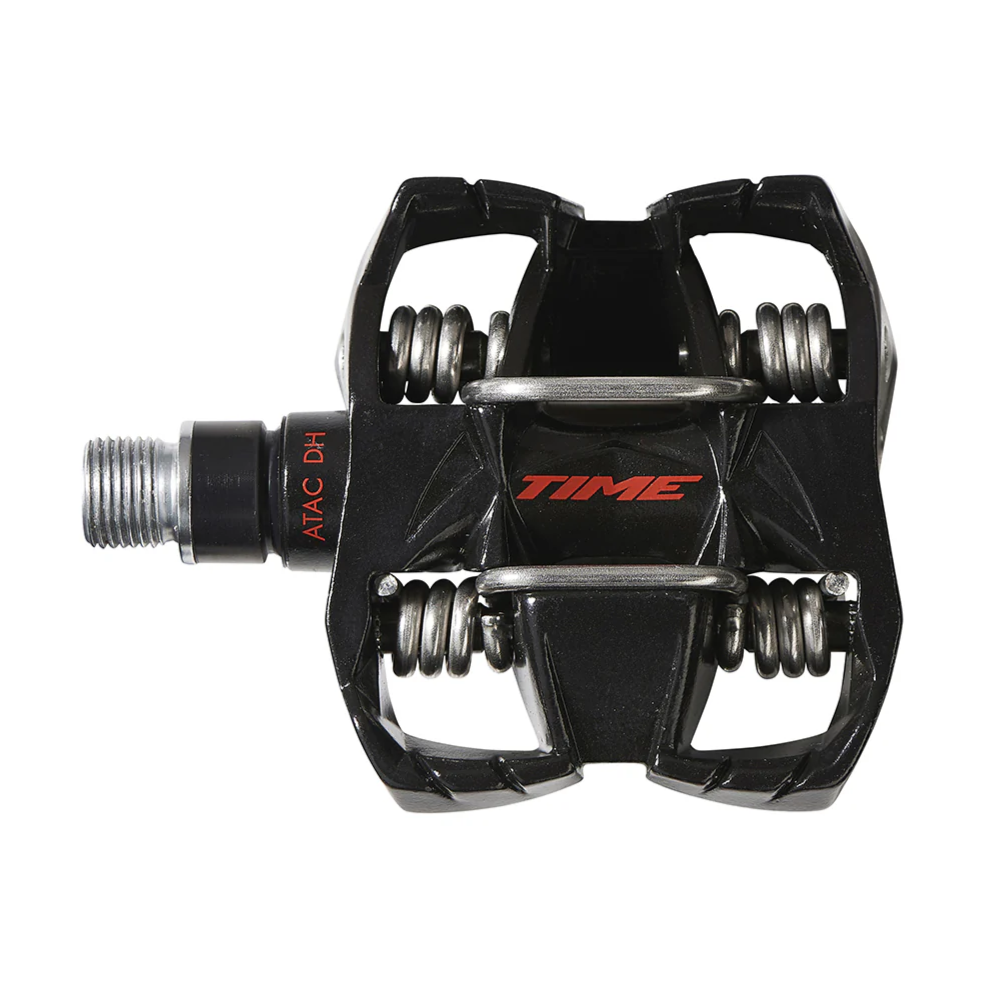

Time Atac DH 4 Pedals

Time DH 4 Pedal including ATAC Cleats

The DH 4 is built with an aluminium body and oversized axle to handle the roughest trail conditions and biggest descents. TIME's famous easy entry and exit system allow riders to easily put a foot down when needed and clip back in fast. The open, self-cleaning design keeps the pedal clean so its function is not compromised by dirt, debris, or mud.

FEATURES

• Rugged for downhill performance.
• Easy pedal entry and exit to put foot down when needed.
• Cleats included with all pedal purchases.

SPECIFICATIONS

Axle component - Oversized hollow steel axle

Bearings - Steel

Body component - Aluminum

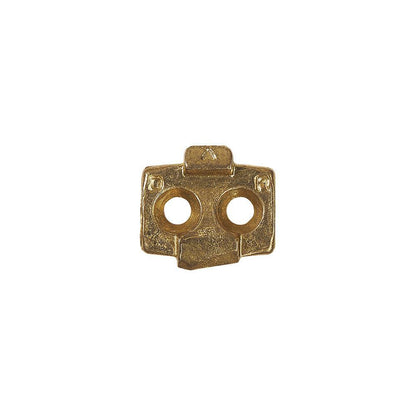

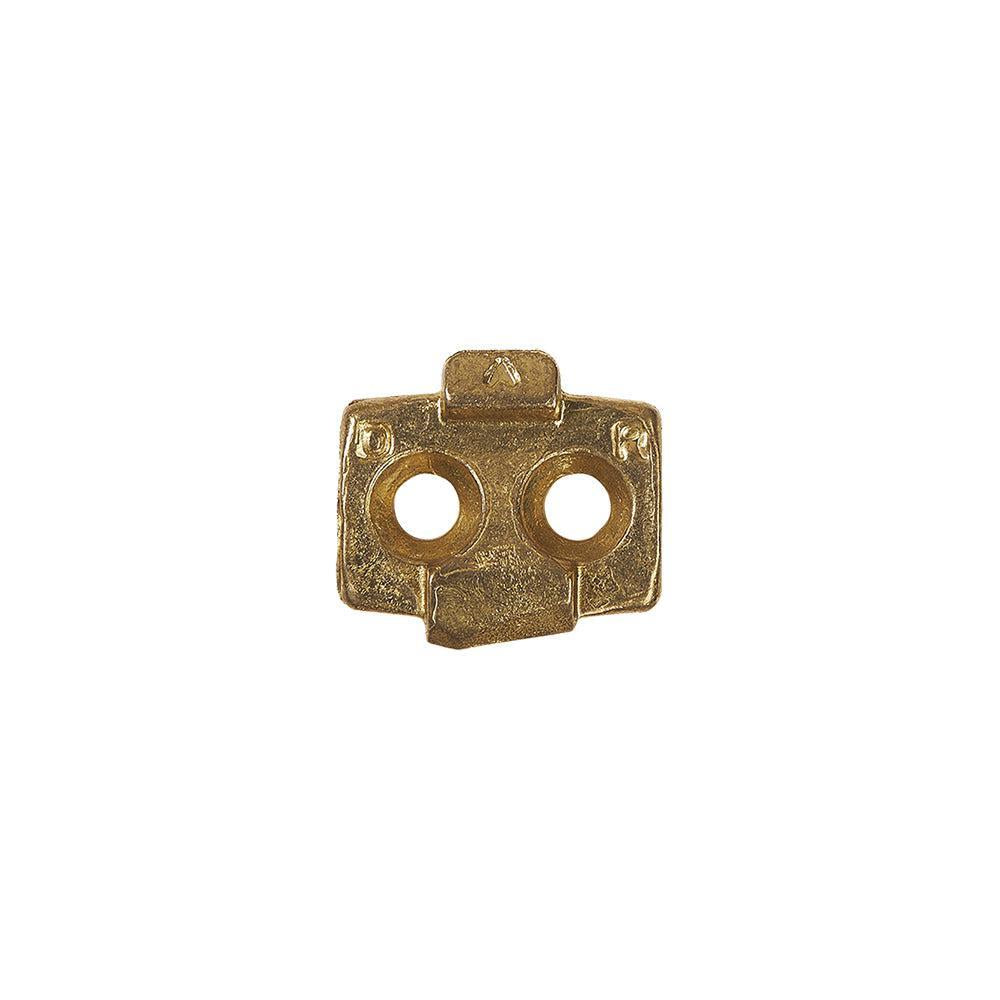

Cleats - ATAC cleats

Pedal stack height - 19mm

Angular freedom - n/a

Contact surface area - n/a

Distance pedal spindle / crank arm - 54mm

Lateral freedom - 5mm

Release angle - 10° with ATAC Easy cleats, 13 or 17° with ATAC cleats

Tension - no

Threading - 9/16 - 20 inch

Weight (per pedal) - 238g

Color (Pedal) - Black

Accessories - ATAC cleats

Intended use - Enduro/Trail/DH

Part Weight (g) - 238
